So I have a 1900 series DT Swiss wheelset with the 370 hub that runs on pawls. I want to upgrade to the ratchet system. I bought all parts needed off Temu. All but 1 – the shim that goes first.

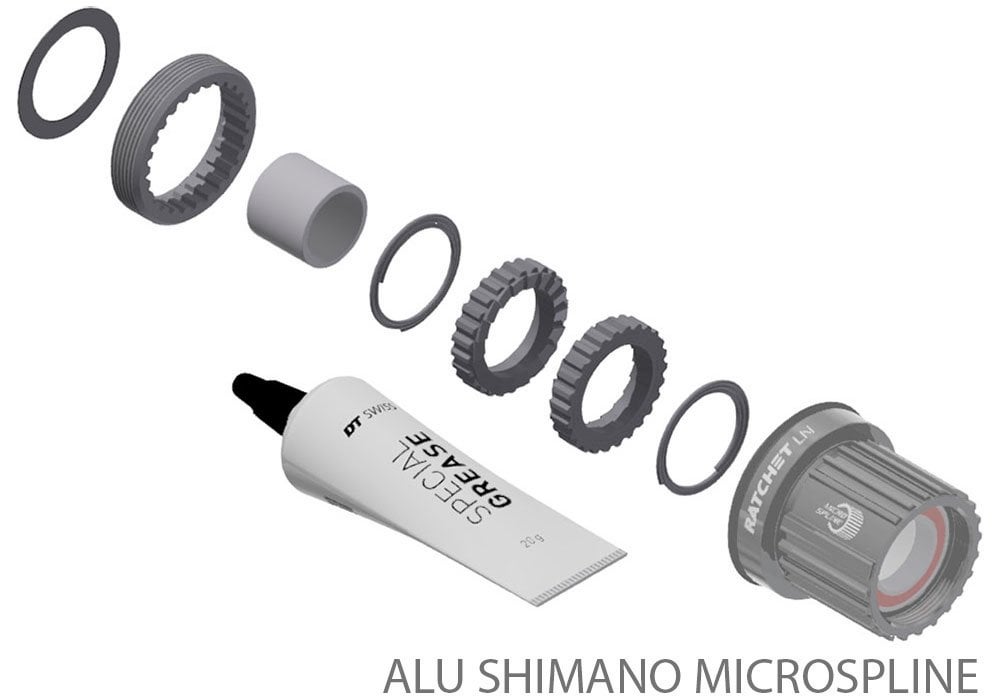

If you look at this diagram, that's the leftmost part in the picture.
https://www.bike-discount.de/media/image/07/c8/58/Alu-Shimano-Microspline.jpg
So my question is, does anyone know what part number this is or what size it is and whether it can be obtained separately?
Cheers
by v-s-g
1 Comment
Pretty sure this is it
Shim ring DIN 988 Ø28/20×0.5mm
Material number
HCDXXX00S1083S
Short name
SHIM RING Ø28/20X0.5MM
https://www.dtswiss.com/en/support/product-support
Go to that link and filter for hubs, 370 ratchet LN, the look under spare parts.
