Put a spacer between the chainring and the bottom bracket or get a smaller chainring. There are dedicated bottom bracket spacers, the most common are 5mm wide.
SiberianAssCancer on

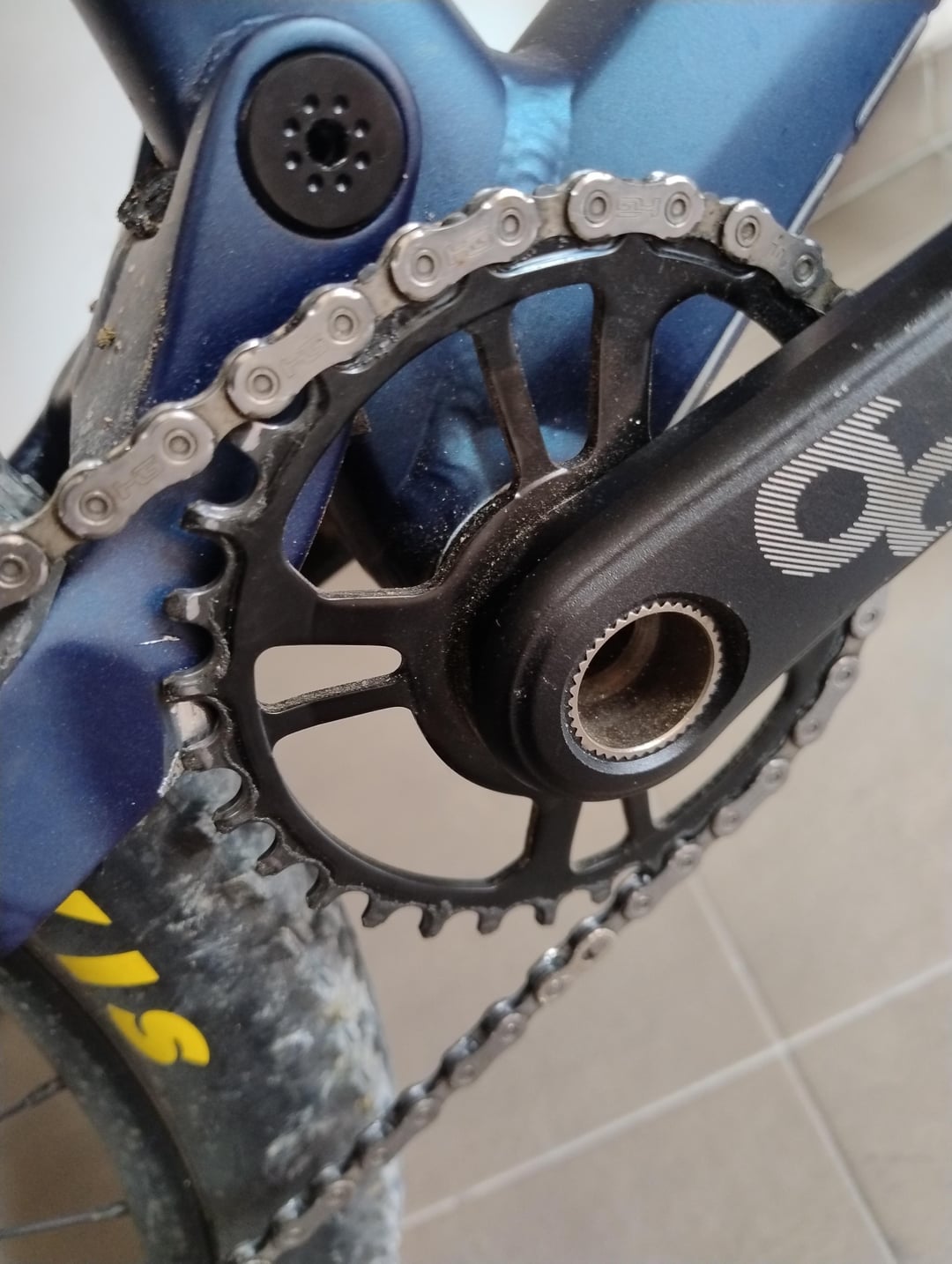

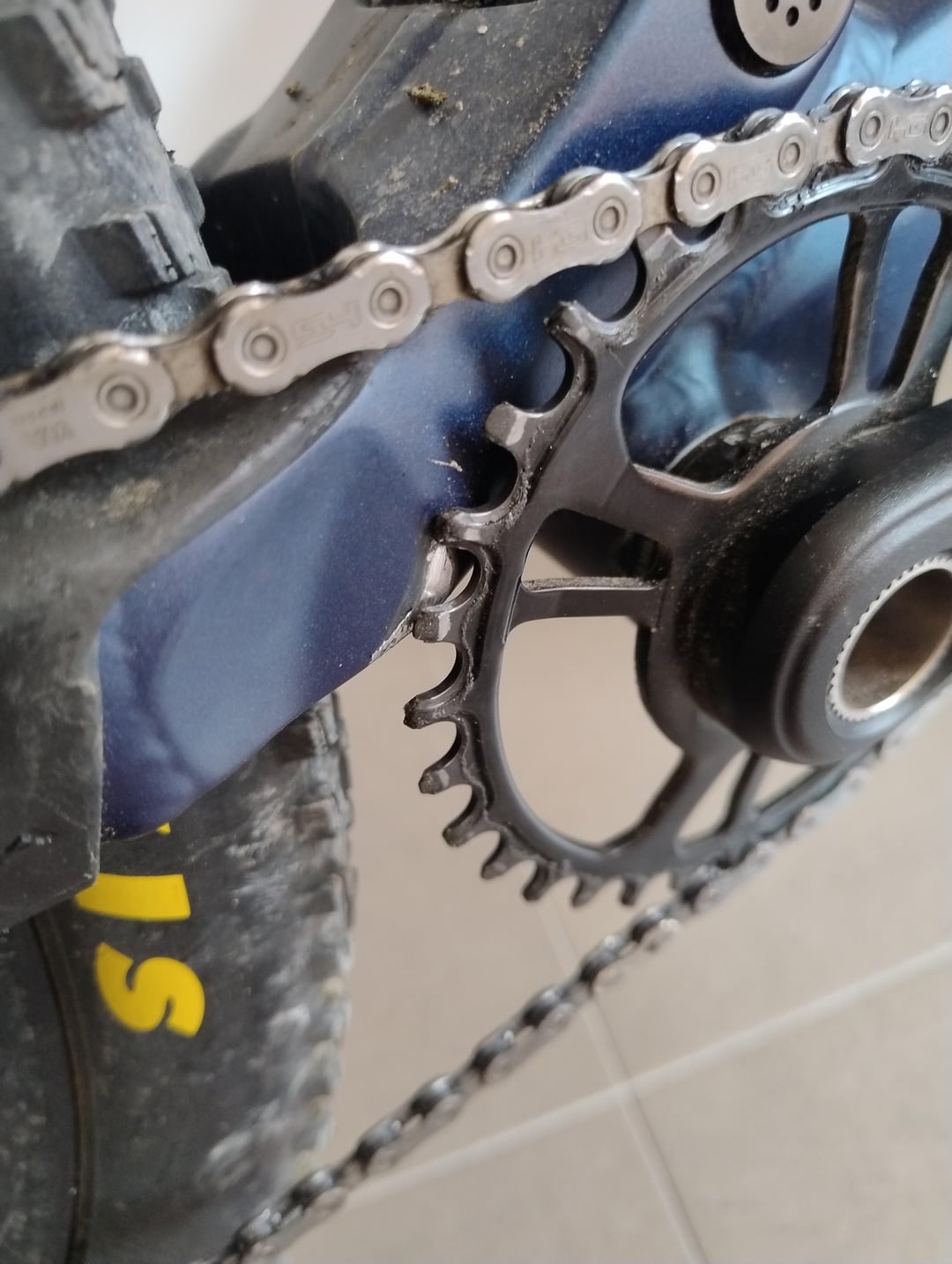

Isn’t your chain in the wrong spot? Looks like it needs to back one tooth so the wide part of the link fits in between the gaps on the chain ring?
dwhere on
You need to look at your frame spec. You either are running too large of chainring (too many teeth) or you have the incorrect chainline (spacers or chainring offset is wrong).
bikefidelity on
Maybe your chainring has been mounted inside out?
IntelligentBack6124 on
looks like spacers are wrong, a smaller ring would lead to the chain rubbing on the chain stay surely?
Ticonderoga_Dixon on
Have you added anything new to the bike?
Brilliant-Witness247 on
Get out a ruler and start figuring out which standard sizes you have and which spacing you need. Reference the bikes’ webpage for geometry/specs. If this is confusing find a proper mechanic
8 Comments
Put a spacer between the chainring and the bottom bracket or get a smaller chainring. There are dedicated bottom bracket spacers, the most common are 5mm wide.
Isn’t your chain in the wrong spot? Looks like it needs to back one tooth so the wide part of the link fits in between the gaps on the chain ring?
You need to look at your frame spec. You either are running too large of chainring (too many teeth) or you have the incorrect chainline (spacers or chainring offset is wrong).
Maybe your chainring has been mounted inside out?
looks like spacers are wrong, a smaller ring would lead to the chain rubbing on the chain stay surely?
Have you added anything new to the bike?
Get out a ruler and start figuring out which standard sizes you have and which spacing you need. Reference the bikes’ webpage for geometry/specs. If this is confusing find a proper mechanic
[https://www.sram.com/globalassets/document-hierarchy/compatibility-map/mtb/dub-mtb-bottom-bracket-compatibility-chart.pdf](https://www.sram.com/globalassets/document-hierarchy/compatibility-map/mtb/dub-mtb-bottom-bracket-compatibility-chart.pdf)
The offset of the chainring is to high. My guess is that you have a 6mm offset chainring. Use a chainring with 3mm or 0mm offset.
