No, the chain follows the curvature of the cage. So above the upper wheel and under the lower wheel.
r200james on

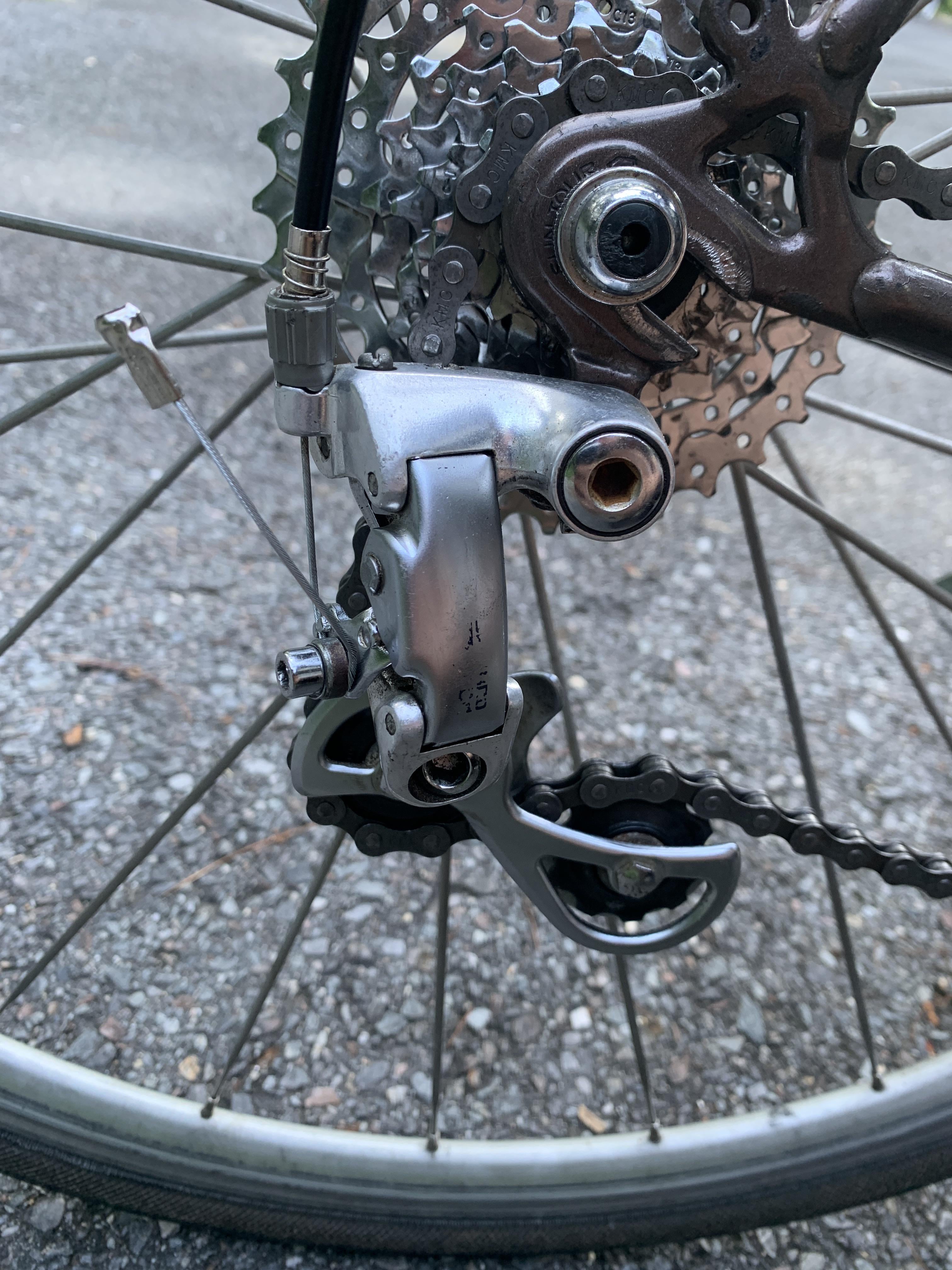

The cage is the piece holding the jockey wheels. Notice the ‘S’ like pattern of the cage. The chain goes in front of the upper jockey wheel and behind the lower jockey wheel.
LoathsomeNeanderthal on
you don’t have to break the chain to fix the routing, you can just take off the pulley wheels instead
HarveyMSchwartz on
You also have the cable routed through the pinch bolt incorrectly. The barrel adjuster should have the spring on the inside, not wrapped around the ferrule.
